APC Smart-UPS SC 450VA 230V - 1U Rackmount/Tower

Tuotekoodi:

SC450RMI1U

EAN:

0731304222712

Tuote Telineeseen asennettu UPS
Virta 450VA

NEW! APC Smart-UPS SC 450VA 230V - 1U Rackmount/Tower

APC Smart-UPS SC, 450VA/280W, Input 230V/Output 230V, Interface Port DB-9 RS-232, Rack Height 1 U

Includes: CD with software, Rack Mounting Brackets, Smart UPS signalling RS-232 cable, User Manual

Product Overview

SC450RMI1U Features

Front-access servicing

Multiple mounting methods

Rack/Tower convertible

Smart-UPS SC Features

Manageability

Network manageable	Monitor and control the UPS remotely via included PowerChute software.
Audible alarms	Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
Automatic self-test	Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Predictive failure notification	Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Serial Connectivity	Provides management of the UPS via a serial port.
LED status indicators	Enables quick understanding and response to visual indicators showing UPS status.
InfraStruXure Manager compatible	Enables centralized management via APC's InfraStruXure Manager.

Economy

Boost and Trim Automatic Voltage Regulation (AVR)	Gives higher application availability by correcting low and high voltage conditions without using the battery.
User-replaceable batteries	Battery replacement is simple and safe, and can be performed by the end-user. A technician is not required to replace the PowerShield battery
Adjustable voltage-transfer points	Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
Safety-agency approved	Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. UL, FCC, CE, C-Tick approvals.

Availability

Dataline Surge Protection	Provides protection of connected equipment from power surges on the data lines.
Power conditioning	Protects connected loads from surges, spikes, lightning, and other power disturbances.
Intelligent battery management	Maximizes battery performance, life, and reliability through intelligent, precision charging.
Automatic restart of loads after UPS shutdown	Automatically starts up the connected equipment upon the return of utility power.
Cold-start capable	Provides temporary battery power when the utility power is out.
Hot-swappable batteries	Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Resettable circuit breakers	Enables quick recovery from UPS overload events.

Technical Specifications

Output

Output Power Capacity

280 Watts / 450 VA

Max Configurable Power

280 Watts / 450 VA

Nominal Output Voltage

230V

Output Voltage Distortion

Less than 5% at full load

Output Frequency (sync to mains)

47 - 53 Hz for 50 Hz nominal,57 - 63 Hz for 60 Hz nominal

Crest Factor

up to 5 : 1

Waveform Type

Stepped approximation to a sinewave

Output Connections

(4) IEC 320 C13
(2) IEC Jumpers

Input

Nominal Input Voltage

230V

Input Frequency

50/60 Hz +/- 3 Hz (auto sensing)

Input Connections

IEC-320 C14

Input voltage range for main operations

160 - 286V

Input voltage adjustable range for mains operation

151 - 302V

Batteries & Runtime

Battery Type	Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time	5 hour(s)
Replacement battery cartridge	RBC18
RBC™ Quantity	1
Typical Backup Time at Half Load	19.4 minutes (140 Watts)
Typical Backup Time at Full Load	5.9 minutes (280 Watts)

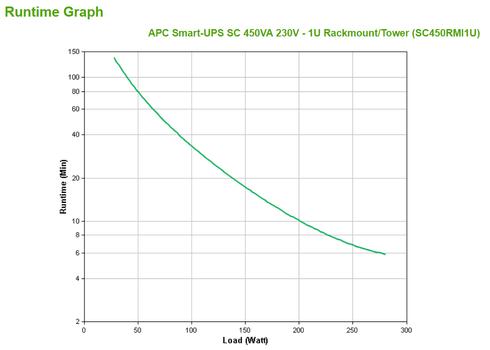

Runtime Chart	Smart-UPS SC

Communications & Management

Interface Port(s)	DB-9 RS-232
Control panel	LED status display with On Line : On Battery : Replace Battery and Overload indicators
Audible Alarm	Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency Power Off (EPO)	Optional

Surge Protection and Filtering

Surge energy rating	320 Joules
Filtering	Full time multi-pole noise filtering : 0.7% IEEE surge let-through : zero clamping response time : meets UL 1449
Dataline protection	RJ-11 2-Way Modem/Fax/DSL splitter with protection (four wire dual lines),RJ45 10/100 Base-T Ethernet protection

Physical

Maximum Height	44.00 mm
Maximum Width	432.00 mm
Maximum depth	383.00 mm
Rack Height	1U
Net Weight	10.18 KG
Shipping Weight	11.73 KG
Shipping Height	164.00 mm
Shipping Width	476.00 mm
Shipping Depth	589.00 mm
Color	Grey
Units per Pallet	24.00

Environmental

Operating Environment	0 - 40 °C
Operating Relative Humidity	0 - 95%
Operating Elevation	0-3000 meters
Storage Temperature	-15 - 45 °C
Storage Relative Humidity	0 - 95%
Storage Elevation	0-15000 meters
Audible noise at 1 meter from surface of unit	38 dBA
Online Thermal Dissipation	38 BTU/hr
